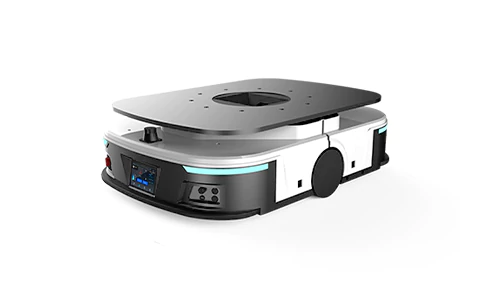

VMR-FR3620L
UNDERRIDE MOBILE ROBOT
Revolutionizing Logistics with Precision, Stability, and Intelligent Safety.
Our material handling robots feature an integrated die-cast chassis, modular design, and 600kg capacity. Utilizing laser SLAM and QR code navigation, they ensure precise positioning. Advanced lifting design supports stable docking. Equipped with core controllers, autonomous charging, and 3D vision obstacle avoidance, they enhance productivity. Ideal for various industries, supporting 24/7 operations for efficient “goods-to-person” workflows.
FEATURES
Utilizes laser SLAM for autonomous positioning and navigation, complemented by 2D code navigation for precise positioning.
Features a stable and reliable lifting design that ensures secure docking of goods, meeting the demands of most applications.
Employs independently developed main control and business modules, offering high integration, stability, and reliability.
Supports multiple autonomous charging methods such as scheduled, fixed-point, and low-power return-to-home.
Supports 3D visual obstacle avoidance, intelligently detecting obstacles for safer operation.
MEDIA
Explore more about VMR-FR3620L
TECH SPECS

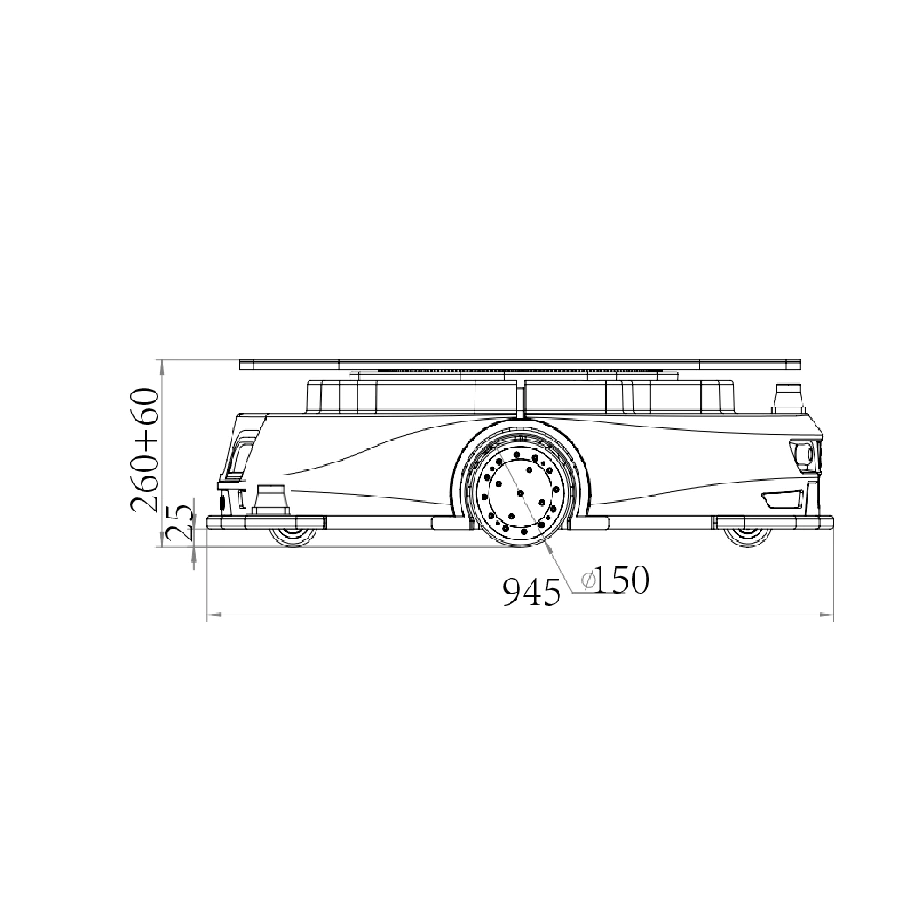

| Dimensions(L*W*H) | 945 mm * 650 mm * 260 mm |
| Net Weight | 110 kg |

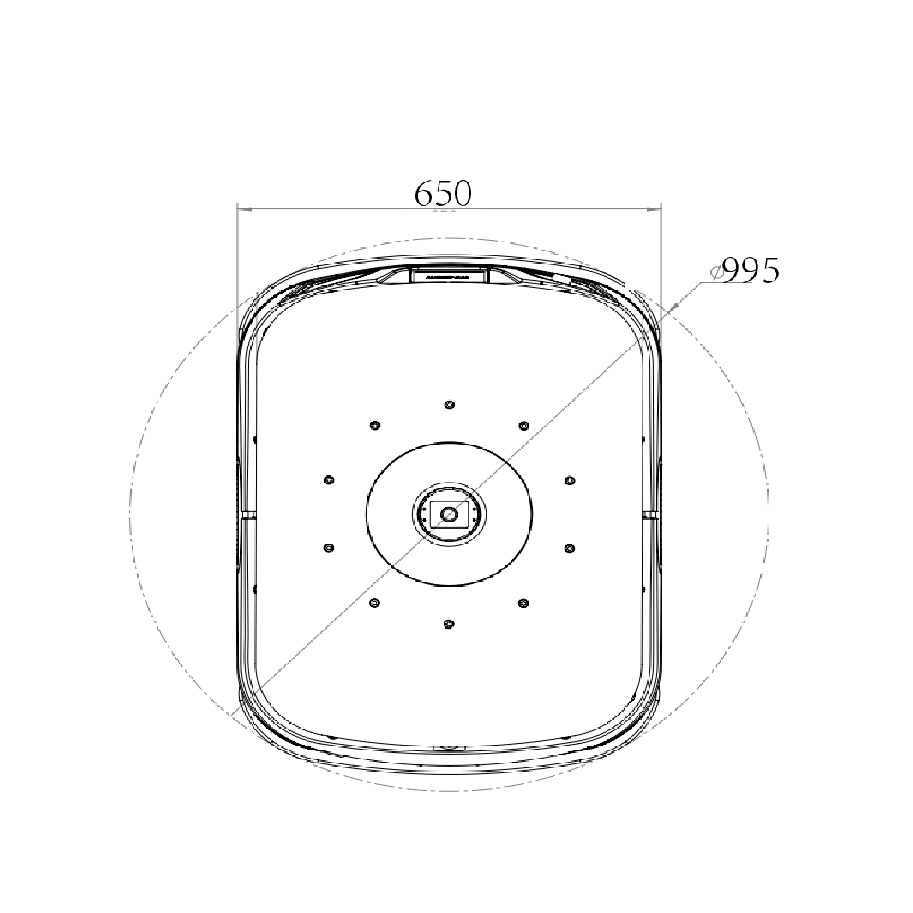

| Rotation Diameter | φ995 mm |
| Lifting Height | 60 mm |
| Rated Lifting Load | 600 kg |
| Rated Towing Load | – |
| Flexible Rotation | Standard, rotate load / robot only or both |
| Protective Range | 360° coverage |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop |
| Laser Obstacle Avoidance | 360° coverage by front & rear laser |
| Safety Edge | All-round protection |
| E-stop Button | The reachable range of a single hand around the robot |
| Audio-Visual Alarm | Light indication+ Audio prompt |
| 3D Vision Obstacle Avoidance | Standard |
| Drive Mode | Two-wheeled differential drive |
| Navigation Mode | Natural navigation |
| Driving Direction | Forward, backward, rotate, left / right turn |
| Speed | 0~2.0 m/s |
| Navigation Accuracy | ±10mm |
| Docking Accuracy | ±5mm |
| Battery Type | LFP |
| Battery Capacity | 48V 24AH |
| Battery Life | ≥8h |
| Charging Method | Automatic / Manual charging |
| Charging Time | ≤1.5h |
| Life Cycle | 2000 cycles |
| LCD Panel | Optional |
| Light Indication | Robot status, fault alarm, battery power, etc. |
| Sound Prompt | Turing, warning, music playback, etc. |
| Button Operation | Emergency stop button, power switch button, operation button |
| Expansion Interface | USB2.0 + RJ45(100MB) |
| Application Scenarios | Indoor |
| Operating Temperature | 0~40℃ |
| Humidity | 10~90%RH, no condensation |
| Ground Slope | ≤ 5% / 3° |
| Gap Width | ≤ 20 mm |
| Air | No dust, no flammable, explosive or corrosive gases |
| Network Communication | WIFI/IEEE82.11a/b/g/n/ac 5G(optional) |
