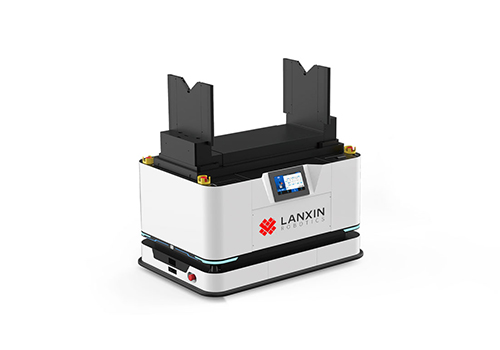

LXSR-PE41200Z

SINGLE-STATION ROLL MATERIAL ROBOT

Enhance your factory's efficiency with the LXSR-PE41200Z coating machine material handling robot. Equipped with the Lanxin Mobile Robot Deep Vision System (LX-MRDVS®), it automates the precise handling of rolled materials like copper and aluminum foil. Supporting autonomous and manual charging, it handles up to 1200kg and operates at speeds up to 1.0 m/s. The LXSR-PE41200Z ensures accurate, efficient material handling, reducing manual labor and improving production quality.

FEATURES

High Security

Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.

Easy to Deploy

With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.

TECH SPECS

Lifting roll

Lifting Method

1200

Rated Load(kg)

350

Lifting Height(mm)

1200 mm(Depends on roll diameter)

Docking Height

Basics

Dimensions(L*W*H)

1334 mm * 934 mm * 778 mm

Net Weight

600 kg

Rotation Diameter

φ1600 mm

Capacities

Lifting Height

350 mm

Rated Load

1200 kg

Docking Height

1200 mm(Depends on roll diameter)

Lifting Method

Lifting roll

Material Weighing

Optional

Safety

Protective Range

Including the body and the load-carrying rack

Protective Measures

Three-level protection: deceleration, gradual stop, emergency stop

Laser Obstacle Avoidance

360° coverage by front & rear laser

Safety Edge

All-round protection

E-stop Button

The reachable range of a single hand around the robot

Audio-Visual Alarm

Light indication+ Audio prompt

3D Vision Obstacle Avoidance

Optional

Motion

Drive Mode

2 steering wheel drive

Navigation Mode

Natural navigation

Driving Direction

Omnidirectional, rotation

Speed

0~1.0 m/s

Navigation Accuracy

±20 mm

Docking Accuracy

±10 mm (laser docking), ±5 mm (QR code visual docking)

Loading Docking Accuracy

≤ ±5 mm

Battery

Battery Type

LFP

Battery Capacity

48V 100AH

Battery Life

≥8h

Charging Method

Automatic / Manual charging

Charging Time

2.5 h

Life Cycle

1500 cycles

HMI

LCD Panel

Optional

Light Indication

Robot status, fault alarm, battery power, etc.

Sound Prompt

Turning, warning, music playback, etc.

Manual Remote Controller

Support

Expansion Interface

RJ45(100MB)

Environment

Application Scenarios

Indoor

Operating Temperature

0~40℃

Humidity

10~90%RH, no condensation

Ground Slope

≤ 5% / 3°

Obstacle Crossing Height

≤ 5 mm
