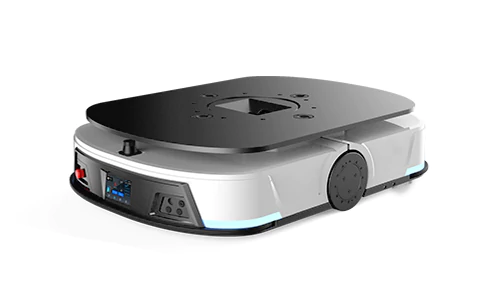

VMR-FR31510L
UNDERRIDE MOBILE ROBOT
Intelligent, Powerful, and Reliable Logistics for Every Industry.
Introducing the VMR-FR31510L Intelligent Handling Robot with Lanxin’s LX-MRDVS® deep vision system and VMR core controller. It supports a 1500kg load, measures 1145L*815W*260Hmm, and rotates within 1200mm. With 0-2m/s speed, natural navigation, 360° safety protection, and 3D environmental perception, it detects obstacles and applies adaptive avoidance. Its die-cast chassis and modular design ensure stability and easy deployment.
FEATURES
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS

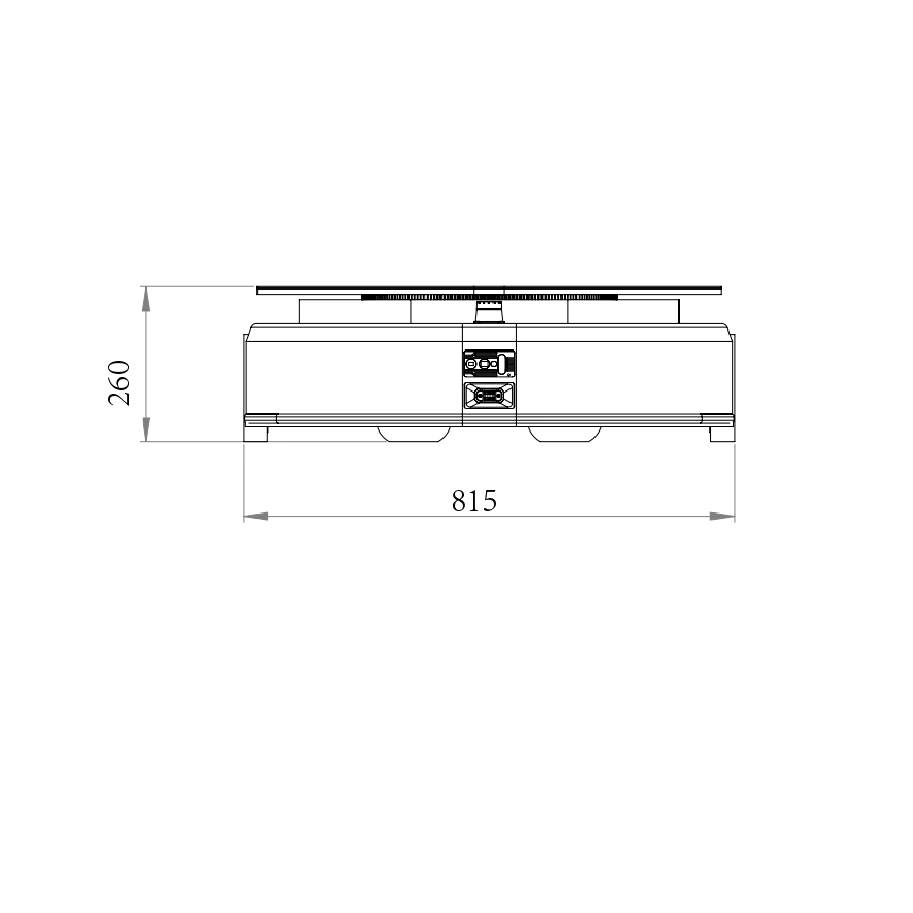

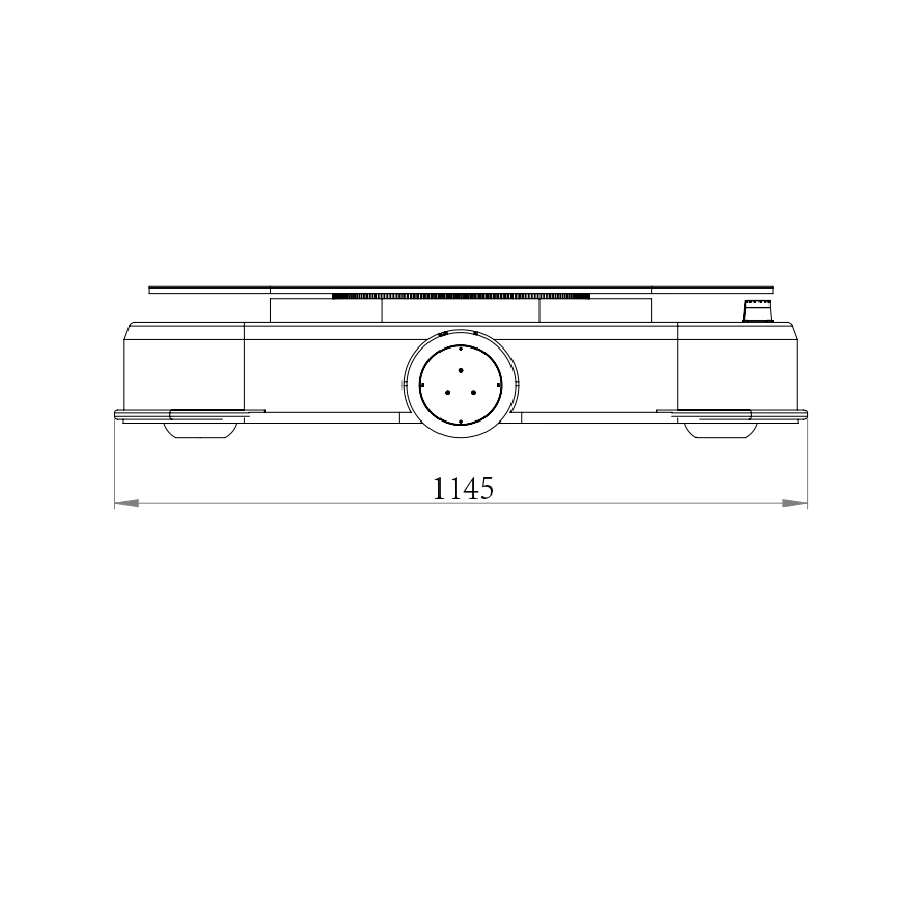

| Dimensions (L×W×H) | 1145 mm × 815 mm × 260 mm |
| Net Weight | 200 kg |

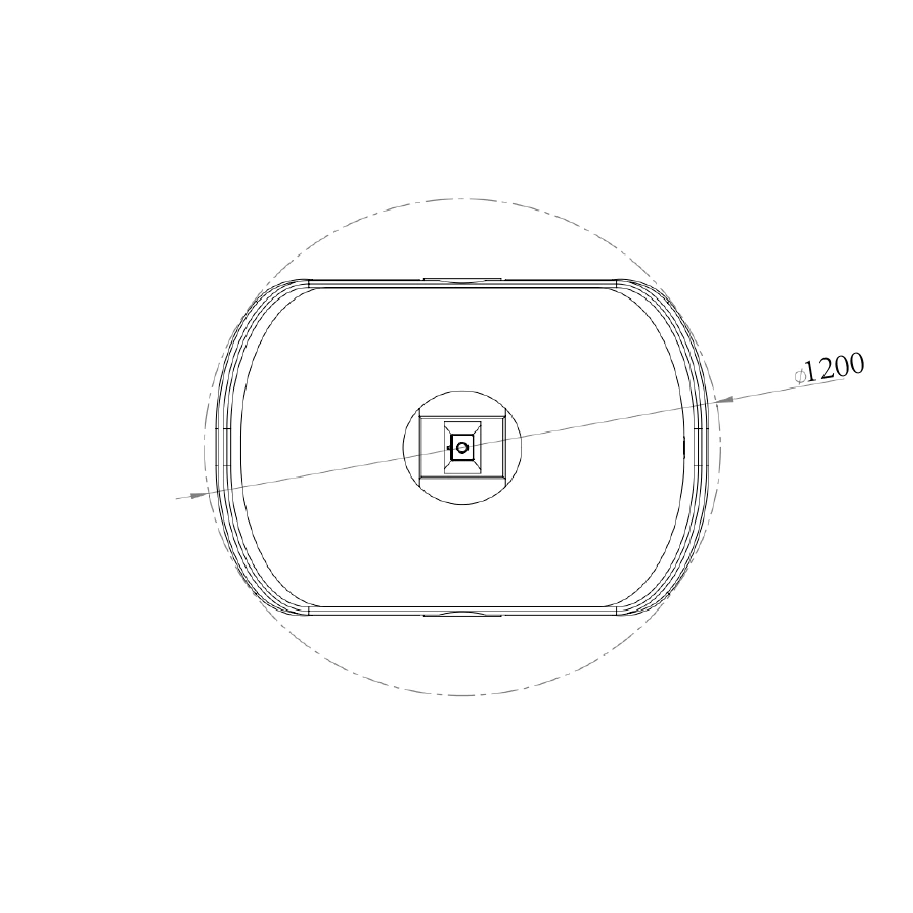

| Rotation Diameter | φ1200 mm |
| Lifting Height | 100 mm |
| Rated Lifting Load | 1500 kg |
| Rated Towing Load | – |
| Flexible Rotation | Standard, rotate load / robot only or both |
| Protective Range | 360° coverage |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop |
| Laser Obstacle Avoidance | 360° coverage by front & rear laser |
| Safety Edge | All-round protection |
| E-stop Button | The reachable range of a single hand around the robot |
| Audio-Visual Alarm | Light indication + Audio prompt |
| 3D Vision Obstacle Avoidance | Standard |
| Drive Mode | Two-wheeled differential drive |
| Navigation Mode | Natural navigation |
| Driving Direction | Forward, backward, rotate, left/right turn |
| Speed | 0~2.0 m/s |
| Navigation Accuracy | Natural navigation |
| Docking Accuracy | Forward, backward, rotate, left/right turn |
| Battery Type | LFP |
| Battery Capacity | 48V 40AH |
| Battery Life | ≥8h |
| Charging Method | Automatic / Manual charging |
| Charging Time | ≤1.5h |
| Life Cycle | 2000 cycles |
| LCD Panel | Optional |
| Light Indication | Robot status, fault alarm, battery power, etc. |
| Sound Prompt | Turing, warning, music playback, etc. |
| Button Operation | Emergency stop button, power switch button, operation button |
| Expansion Interface | USB2.0 + RJ45(100MB) |
| Application Scenarios | Indoor |
| Operating Temperature | 0~40℃ |
| Humidity | 10~90%RH, no condensation |
| Ground Slope | ≤ 5% / 3° |
| Gap Width | ≤ 20 mm |
| Air | No dust, no flammable, explosive or corrosive gases |
| Network Communication | WiFi IEEE802.11 a/b/g/n/ac/ax, 5G (optional) |
