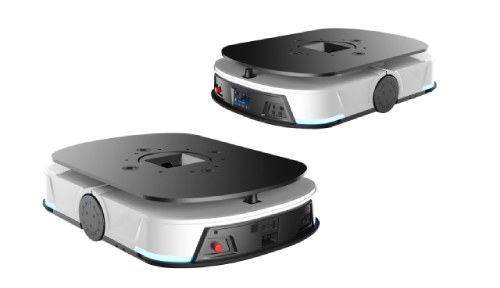

VMR-FR31010L
UNDERRIDE MOBILE ROBOT
This intelligent handling robot is specially designed for the efficient transportation of heavy and large materials and equipment, and is widely used in industries such as new energy, automotive, construction machinery, and packaging. Whether for warehouse storage, sorting and distribution, or goods collection and loading/unloading operations, it can flexibly adapt to diverse scenarios, helping manufacturing plants achieve intelligent and flexible logistics transformation.
FEATURES
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
Allow easy installation of different equipment such as rollers, shelves, and safety boxes, while provide rich interfaces to meet diverse application needs.
TECH SPECS
| Dimensions(L*W*H) | 1145 mm * 815 mm * 260 mm |
| Net Weight | 190kg |
| Rotation Diameter | φ1200 mm |
| Lifting Height | 60 mm |
| Rated Lifting Load | 1000 kg |
| Stop Angle Accuracy | ±1° |
| Flexible Rotation | Standard, rotate load / robot only or both |
| Protective Range | 360° coverage |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop |
| Laser Obstacle Avoidance | 360° coverage by front & rear laser |
| Safety Edge | All-round protection |
| E-stop Button | The reachable range of a single hand around the robot |
| Audio-Visual Alarm | Light indication + Audio prompt |
| 3D Vision Obstacle Avoidance | Standard |
| Drive Mode | Two-wheeled differential drive |
| Navigation Mode | Natural navigation |
| Driving Direction | Forward, backward, rotate, left / right turn |
| Speed | 0-2.0 m/s |
| Navigation Accuracy | ±10mm |
| Docking Accuracy | ±5mm |
| Battery Type | LFP |
| Battery Capacity | 48V 60AH |
| Battery Life | ≥8h |
| Charging Method | Automatic / Manual charging |
| Charging Time | ≤1.5h |
| Life Cycle | 2000 cycles |
| LCD Panel | Optional |
| Light Indication | Robot status, fault alarm, battery power, etc. |
| Sound Prompt | Turing, warning, music playback, etc. |
| Button Operation | Emergency stop button, power switch button, operation button |
| Expansion Interface | USB2.0 + RJ45(100MB) |
| Application Scenarios | Indoor |
| Operating Temperature | 0~40℃ |
| Humidity | 10~90%RH, no condensation |
| Ground Slope | ≤ 5% / 3° |
| Gap Width | ≤ 20 mm |
| Air | No dust, no flammable, explosive or corrosive gases |
| Network Communication | WiFi IEEE802.11 a/b/g/n/ac/ax, 5G (optional) |
