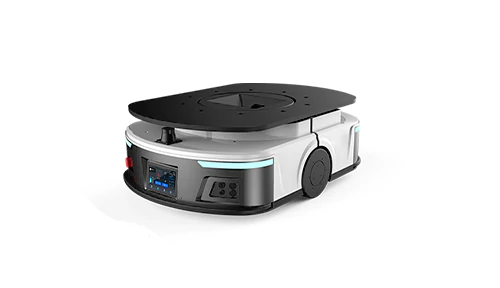

VMR-FR3400L
UNDERRIDE MOBILE ROBOT
Leading Integrated Design for Stable, Modular, and Intelligent Logistics Solutions.
Our material handling robots feature an integrated die-cast chassis and modular designs for enhanced stability. With laser SLAM navigation, they deploy effortlessly without markers. Customizable chassis modules enable seamless integration with on-site systems. Core controllers support autonomous charging and 24/7 operations, ideal for factories and warehouses, with up to 400kg capacity.
FEATURES
Utilizes 3D laser SLAM for autonomous positioning and navigation, requiring no markers or site modifications, making deployment more convenient.
Various business units such as rollers and carriers can be integrated based on the standard chassis module, enabling quick customization.
Achieves cross-regional application by physically or network connecting and interacting with systems like doors and elevators within the application environment.
Employs independently developed main control and business modules, offering high integration, stability, and reliability.
Supports multiple autonomous charging methods such as scheduled, fixed-point, and low-power return-to-home.
TECH SPECS

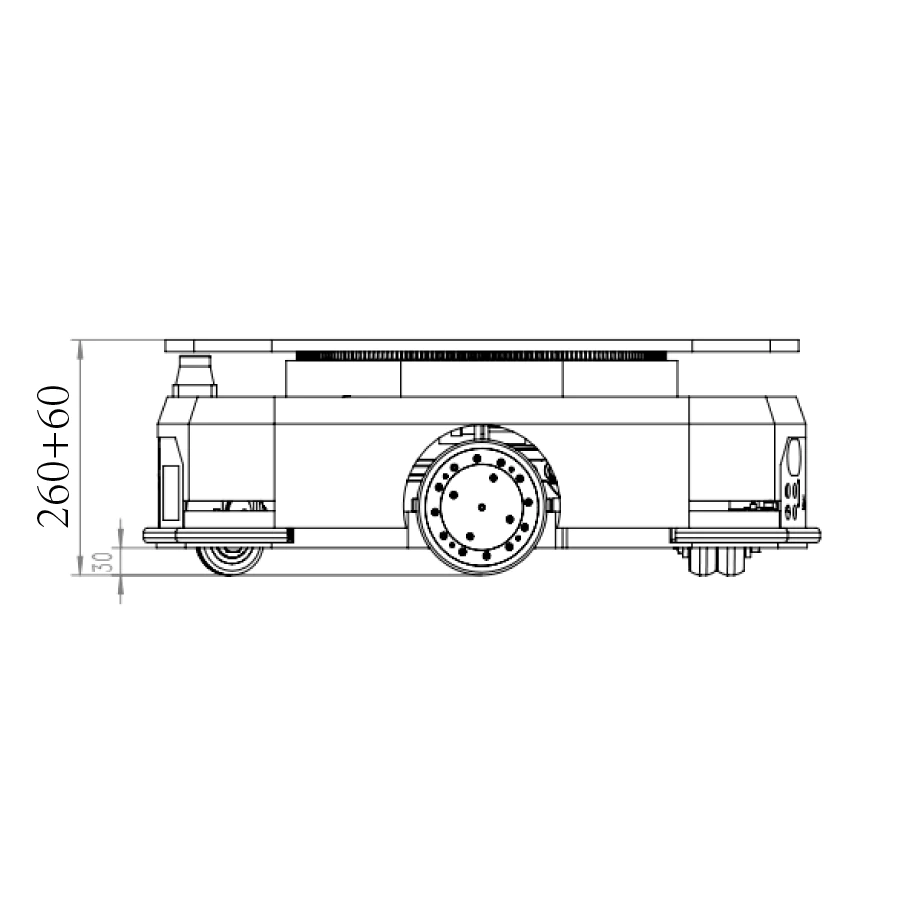

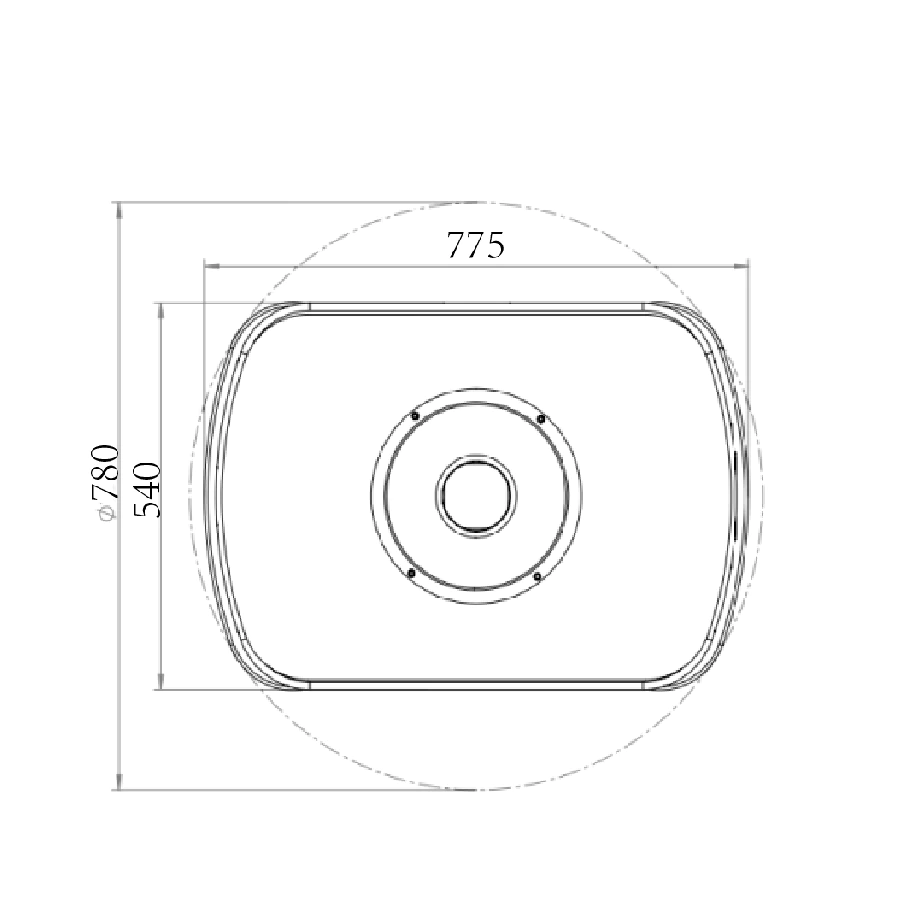

| Dimensions(L*W*H) | 775 mm * 540 mm * 260 mm |
| Net Weight | 90 kg |
| Rotation Diameter | φ995 mm |
| Lifting Height | 60 mm |
| Rated Lifting Load | 400 kg |
| Rated Towing Load | – |
| Flexible Rotation | Standard, rotate load / robot only or both |
| Protective Range | 360° coverage |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop |
| Laser Obstacle Avoidance | 360° coverage by front & rear laser |
| Safety Edge | All-round protection |
| E-stop Button | The reachable range of a single hand around the robot |
| Audio-Visual Alarm | Light indication + Audio prompt |
| 3D Vision Obstacle Avoidance | Standard |
| Drive Mode | Two-wheeled differential drive |
| Navigation Mode | Natural navigation |
| Driving Direction | Forward, backward, rotate, left / right turn |
| Speed | 0~2.0 m/s |
| Navigation Accuracy | ±10mm |
| Docking Accuracy | ±5mm |
| Battery Type | LFP |
| Battery Capacity | 48V 21AH |
| Battery Life | ≥8h |
| Charging Method | Automatic / Manual charging |
| Charging Time | ≤1.5h |
| Life Cycle | 2000 cycles |
| LCD Panel | Optional |
| Light Indication | Robot status, fault alarm, battery power, etc. |
| Sound Prompt | Turing, warning, music playback, etc. |
| Button Operation | Emergency stop button, power switch button, operation button |
| Expansion Interface | USB2.0 + RJ45(100MB) |
| Application Scenarios | Indoor |
| Operating Temperature | 0~40℃ |
| Humidity | 10~90%RH, no condensation |
| Ground Slope | ≤ 5% / 3° |
| Gap Width | ≤ 20 mm |
| Air | No dust, no flammable, explosive or corrosive gases |
| Network Communication | WiFi IEEE802.11 a/b/g/n/ac/ax, 5G (optional) |
