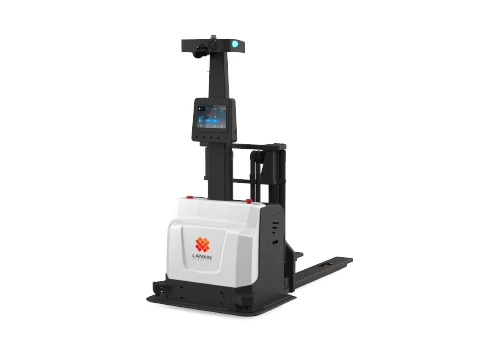

VMR-FL22003S
UNMANNED FORKLIFT
Smart, Safe, and Powerful Material Handling for Continuous Operations.The VMR-FL22003S Intelligent Handling Robot offers superior precision and reliability with a 2000kg load capacity and 4500mm lifting height. Using high-precision vision algorithms, it autonomously adjusts for irregular pallets, navigates without markers, and plans paths. Equipped with 3D vision, LiDAR, and safety features, it ensures 360° protection. Autonomous charging supports continuous 24/7 operation, ideal for high-frequency loading in e-commerce and factory warehouses.
FEATURES
Adopts 360° full coverage and 3D obstacle avoidance technology to ensure safe operation in busy environments.
With the use of real SLAM natural navigation system, it can be put into use immediately without the need for additional equipment deployment, greatly enhancing operational convenience.
TECH SPECS
| Dimensions(L*W*H) | 2950 mm * 1120 mm * 2100 mm |
| Net Weight | 3100 kg |
| Rotation Diameter | φ3600 mm |
| Rated Load | 2000 kg(Max) |
| Lifting Height | 3000 mm(4500 mm Max) |
| Load Center | 500 mm |
| Fork Size (L*W*H) | 1070 mm * 122 mm * 40 mm (x2) |
| Fork Outer Width | 710 mm(Standard) |
| Protective Range | 360° coverage |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop |
| Laser Obstacle Avoidance | 360° coverage by 3 front & rear laser sensors |
| Safety Edge | Front half-pack protection |
| E-stop Button | The reachable range of a single hand around the robot |
| Audio-Visual Alarm | Light indication + Audio prompt |
| Vision Obstacle Avoidance | Optional |
| Drive Mode | Single steering wheel |
| Navigation Mode | Natural navigation, vision / laser SLAM |
| Driving Direction | Forward, backward, rotate, left / right turn |
| Speed | 0~1.5 m/s |
| Stop Position Accuracy | ±10 mm |
| Stop Angle Accuracy | ±1° |
| Battery Type | LFP |
| Battery Capacity | 24V 270AH |
| Battery Life | 6~8 h |
| Charging Method | Automatic / Manual charging |
| Charging Time | ≤3h |
| Life Cycle | 2000 cycles |
| LCD Panel | 10 inches |
| Light Indication | Robot status, fault alarm, battery power, etc |
| Sound Prompt | Turning, warning, music playback, etc. |
| Button Operation | Power switch, switch button, reset button, manual/automatic switch |
| Manual Remote Controller | Support |
| Expansion Interface | RJ45(100MB) |
| Application Scenarios | Indoor |
| Operating Temperature | 0~40℃ |
| Humidity | 10~90%RH, no condensation |
| Ground Slope | ≤5%(no-load) / 3%(full-load) |
| Network Communication | WiFi IEEE802.11 a/b/g/n/ac/ax, 5G(optional) |
| Aisle Width for 90° Pallet Pickup | 3600 mm (pallet: 1200 * 1200 mm) |
