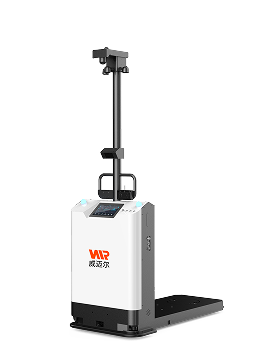

VMR-FR4800
Cage Handling Robot
The LANXIN cage handling robot is an intelligent handling device for the battery industry. It utilizes laser SLAM autonomous navigation and 3D vision obstacle avoidance technology to achieve precise positioning and flexible obstacle avoidance in dynamic and complex environments, supporting automated docking, loading, unloading, and transport of cage-carrying vehicles.
FEATURES
Employs independently developed main control and business modules, offering high integration, stability, and reliability
Highly versatile floating docking platform supports multi-dimensional precise docking requirements, suitable for most application scenarios
Utilizes 3D visual SLAM for autonomous positioning and navigation, complemented by 2D code navigation for precise positioning
Supports multiple autonomous charging methods such as scheduled, fixed-point, and low-power return-to-home.
TECH SPECS

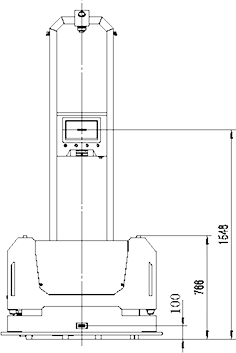

| Dimensions(L*W*H) | 1575mm*800mm*1850mm |
| Net Weight | 400 kg |
| Rotation Diameter | φ1800 mm |
| Docking Height | 870 mm |
| Width Adjustable Range | 580mm |
| Conveying Distance | 1300mm |
| No. of Load Positions | 1 |
| Rated Load | 800 kg |
| Max. Carrier Size (L*W*H) | 325/565 mm (Customizable) |
| Protective Range | Including the body and the load-carrying rack |
| Protective Measures | Three-level protection: deceleration, gradual stop, emergency stop |
| Laser Obstacle Avoidance | 360° coverage by front & rear laser |
| Safety Edge | All-round protection |
| E-stop Button | The reachable range of a single hand around the body |
| Audio-Visual Alarm | Light indication+ Audio prompt |
| Vision Obstacle Avoidance | Optional |
| Drive Mode | 2 steering wheel drive |
| Navigation Mode | Natural navigation |
| Driving Direction | Forward, backward, rotate, left / right turn |
| Speed | 0-2m/s |
| Navigation Accuracy | ±20 mm |
| Docking Accuracy | ±10 mm (laser docking), ±5 mm (QR code visual docking) |
| Battery Type | LFP |
| Battery Life | ≥8h |
| Charging Method | Automatic / Manual charging |
| Charging Time | ≤1.5h |
| Life Cycle | 1500 cycles |
| LCD Panel | Optional |
| Light Indication | Robot status, fault alarm, battery power, etc. |
| Sound Prompt | Turing, warning, music playback, etc. |
| Button Operation | Emergency stop button, power switch button, operation button |
| Expansion Interface | RJ45(100MB) |
| Application Scenarios | Indoor |
| Operating Temperature | 0~40℃ |
| Humidity | 10~90%RH, no condensation |
